Behlke

返回首頁

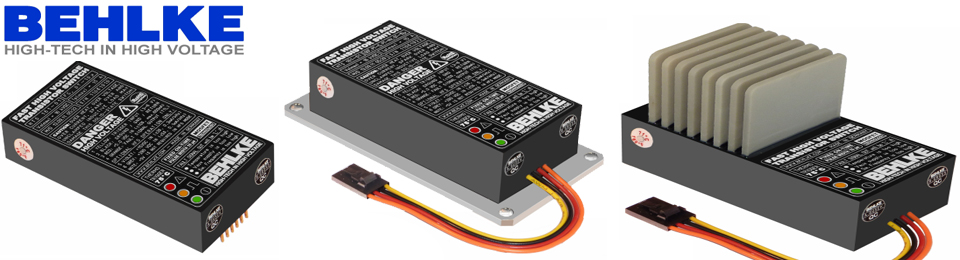

Behlke電源

Behlke Power Electronics GmbH 30年以來，主要從事脈沖電力電子和高壓半導體堆的設計。功率MOSFET來到市場，全新的材料可能是另一個革命性的新產品的完美基礎。實驗這種新材料，并在研究所提出了快速高壓推挽開關，使研究人員能夠進行離子解吸過程的TOF-MS特殊實驗。

Switch Model [sorted by voltage]	Description / Comment ●?Preferred stock type?○?Lead time > 6 weeks? X Not for new development?		Max. Voltage [kV]	Peak Current [A]	Peak Power ? [MW]	? On-?? Time [μs]	Housing Dimensions [mm3]	Drawing (PDF)
HTS 40-1000-SCR	●	Sync. I/O for parallel connection.	4	10000	40	35…∞	89 x 64 x 31	request
HTS 60-1000-SCR	●	Sync. I/O for parallel connection.	6	10000	60	35…∞	122 x 64 x 31	request
HTS 60-100-SCR	●	Tubular housing with HV pigtails. Cooling options not available.	6.4	1000	6.4	35…∞	135 x 20 x 20	request
HTS 60-200-SCR	●	LED indicators. Very compact design - CF options partly not applicable!	6.4	2000	12.8	35…∞	80 x 38 x 25	PDF
HTS 80-200-SCR	●	Sync. I/O for parallel connection.	8	2000	16	35…∞	89 x 64 x 31	request
HTS 80-500-SCR	●	Sync. I/O for parallel connection.	8	5000	40	35…∞	89 x 64 x 31	PDF
HTS 80-1000-SCR	●	Sync. I/O for parallel connection.	8	10000	80	35…∞	153 x 64 x 31	PDF
HTS 100-1600-SCR	●	LED indicators & Sync. I/O for parallel connection	10	16000	160	35…∞	179 x 103 x 35	request
HTS 120-200-SCR	●	Sync. I/O for parallel connection.	12	2000	24	35…∞	122 x 64 x 31	request
HTS 120-500-SCR	●	Sync. I/O for parallel connection.	12	5000	60	35…∞	122 x 64 x 31	PDF

Model?[sorted by dimensions]	Description / Comment ●?Preferred stock type?○?Limited stock? X Not? for new development		Max. Voltage [kV]	Peak Current [A]	Peak Power [MW]	On-Resist. ? [Ω]	On-Time [ns]	Dimensions [mm3]	Drawing (PDF)
HTS 40-06	●	Very compact and lightweight design. LED indicators. 1 ns rise time.?	4	60	0.24	3.4	100	80 x 38 x 25	PDF
HTS 50-05	●	Very compact and lightweight design. LED indicators. 1 ns rise time.?	5	50	0.25	4.8	100	80 x 38 x 25	PDF
HTS 60-04	●	Very compact and lightweight design. LED indicators.?	6.4	40	0.256	8.8	100	80 x 38 x 25	PDF
HTS 80-03	●	Very compact and lightweight design. LED indicators.?	8	30	0.24	16	100	80 x 38 x 25	PDF
HTS 160-01	●	Very compact and lightweight design. LED indicators.?	16	15	0.24	64	100	80 x 38 x 25	PDF
HTS 20-08	x	?	2	80	0,16	1	150	70 x 50 x 27	PDF
HTS 30-06	x	?	3	60	0,18	3	150	70 x 50 x 27	PDF
HTS 50-06	x	?	5	60	0.3	5	150	70 x 50 x 27	PDF

Model?[sorted by dimensions]	Description / Comment ●?Preferred stock type?○?Limited stock? X Not for new development		Drawing (PDF)	Dimensions [mm3]	Voltage [kV]	Pk. Current [A]	On-Resist. ? [Ω]	On-Time [ns]
HTS 11-14-C	●	COMPACT SERIES? ?	PDF	79 x 38 x 17	1.2	140	1.2	50…∞
HTS 21-07-C	●	COMPACT SERIES? ?	PDF	79 x 38 x 17	2.4	70	2.4	50…∞
HTS 31-06-C	●	COMPACT SERIES? ?	PDF	79 x 38 x 17	3	60	5	50…∞
HTS 31-05-C	●	COMPACT SERIES.? Very Low Natural Capacitance?CN?	PDF	79 x 38 x 17	3.6	50	7	50…∞
HTS 41-05-C	●	COMPACT SERIES? ?	PDF	79 x 38 x 17	4.8	50	6	50…∞
HTS 61-03-C	●	COMPACT SERIES? ?	PDF	79 x 38 x 17	6	30	10	50…∞
HTS 71-02-LC-C	●	COMPACT SERIES.? Very Low Natural Capacitance?CN	PDF	79 x 38 x 17	7.2	25	14	50…∞
HTS 91-02-C	●	COMPACT SERIES? ?	PDF	79 x 38 x 17	9.6	25	12	50…∞
HTS 121-01-C	●	COMPACT SERIES? ?	PDF	79 x 38 x 17	12	15	48	50…∞
HTS 181-01-C	●	COMPACT SERIES	PDF	79 x 38 x 17	18	12	60	50…∞
HTS 61-06-C	●	COMPACT SERIES? ?	PDF	175 x 50 x 30	6	64	5.2	75…∞
HTS 101-02-LC-C	●	COMPACT SERIES.? Very Low Natural Capacitance?CN?	PDF	125 x 38 x 17	10.8	25	21	80…∞
HTS 91-05-C	●	COMPACT SERIES? ?	PDF	125 x 38 x 17	9.6	50	6	80…∞
HTS 121-03-C	●	COMPACT SERIES? ?	PDF	175 x 50 x 30	12	32	21	75…∞
HTS 181-02-C	●	COMPACT SERIES.? With HV pigtails (option PT-HV)?	PDF	175 x 50 x 30	18	24	36	75…∞
HTS 241-01-C	●	COMPACT SERIES.? With HV pigtails (option PT-HV)?	PDF	175 x 50 x 30	24	15	120	75…∞
HTS 361-01-C	●	COMPACT SERIES.? With HV pigtails (option PT-HV)? ?	PDF	175 x 50 x 30	36	12	120	75…∞

Switch Model? [sorted by voltage]	Description / Comment ● Preferred stock type? ○ Limited stock??X?Not for new development		Voltage [kV]	Pk. Current [A]	On-Resist. [Ω]	On-Time [ns]	Dimensions L x W x H [mm3]	Drawing (PDF)
HTS 11-07-HB-C	●	Designed for PCB assembly. Other housings are optionally available.	2 x 1.2	2 x 70	2 x 1.2	50…∞	79 x 38 x 17	PDF
HTS 21-07-HB-C	●	Designed for PCB assembly. Other housings are optionally available.	2 x 2.4	2 x 70	2 x 2.4	50…∞	125 x 38 x 17	request
HTS 31-03-HB-C	●	Designed for PCB assembly. Other housings are optionally available.	2 x 3	2 x 30	2 x 5	50…∞	79 x 38 x 17	PDF
HTS 31-13-HB-B-C	●	?Designed for PCB assembly. Other housings are optionally available. Trench FET.???	2 x 3.9	2 x 130	2 x 0.5	150…∞	79 x 38 x 17	PDF
HTS 41-02-HB-LC-C	●	Designed for PCB assembly. Other housings are optionally available. Low natural capacitance.	2 x 4.8	2 x 25	2 x 7	50…∞	79 x 38 x 17	PDF
HTS 61-01-HB-C	●	Designed for PCB assembly. Other housings are optionally available.	2 x 6	2 x 15	2 x 22	50…∞	79 x 38 x 17	PDF
HTS 61-03-HB-C	●	Designed for PCB assembly. Other housings are optionally available.	2 x 6	2 x 30	2 x 10	70…∞	125 x 38 x 17	request
HTS 71-13-HB-B-C	●	Designed for PCB assembly. Other housings are optionally available. Trench FET.??	2 x 7.8	2 x 130	2 x 1	180…∞	125 x 38 x 17	request
HTS 91-01-HB-C	●	Designed for PCB assembly. Other housings are optionally available.	2 x 9	2 x 12	2 x 42	50…∞	79 x 38 x 17	PDF

Model?[sorted by dimensions]	Description / Comment ●?Preferred stock type?○?Limited stock? X Not for new development		Drawing (PDF)	Dimensions [mm3]	Voltage [kV]	Pk. Current [A]	HV Pulse Width [ns]
GHTS 60	●	Very compact.?Polarity reversal manually by earthing plug. 15 nF buffer capacitor.	request	170 x 110 x 45	2 x 6	2 x 15	100…∞
GHTS 30	●	Very compact.?Polarity reversal manually by earthing plug. 15 nF buffer capacitor.	request	170 x 110 x 45	2 x 3	2 x 30	100…∞
GHTS 30 A	●	Very compact.?Polarity reversal manually by earthing plug. 15 nF buffer capacitor.	request	170 x 110 x 45	2 x 3	2 x 60	100…∞
GHTS 100	●	Very compact.?Polarity reversal manually by earthing plug. 15 nF buffer capacitor.	request	210 x 110 x 45	2 x 10	2 x 15	100…∞
GHTS 60 A	●	Very compact.?Polarity reversal manually by earthing plug. 15 nF buffer capacitor.	request	210 x 110 x 45	2 x 6	2 x 30	100…∞
GHTS 100 A	●	Very compact.?Polarity reversal manually by earthing plug. 15 nF buffer capacitor.	request	210 x 110 x 45	2 x 10	2 x 30	100…∞
GHTS 60 B	●	Very compact.?Polarity reversal manually by earthing plug. 15 nF buffer capacitor.	request	210 x 110 x 45	2 x 6	2 x 60	100…∞

Model?[sorted by dimensions]	Description / Comment ●?Preferred stock type?○ Limited stock? X Not for new development		Dimensions [mm3]	Voltage [kV]	Pk. Current [A]
FDA 60-180	●	Especially for HTS 61-40, HTS 61-240-SI and 61-160-FI	78 x 76 x 25	6	1800
FDA 60-240	●	Especially for HTS 61-40, HTS 61-240-SI and 61-160-FI	102 x 76 x 25	6	2400
FDA 100-75	●	?	84 x 35 x 30	10	750
FDA 100-150	●	?	84 x 35 x 30	10	1500
FDA 160-75	●	?	84 x 35 x 30	16	750
FDA 160-150	●	?	84 x 35 x 30	16	1500
FDA 200-75	●	?	101 x 35 x 30	20	750
FDA 200-150	●	?	101 x 35 x 30	20	1500
FDA 240-75	●	?	116 x 35 x 30	24	750
FDA 240-150	●	?	116 x 35 x 30	24	1500
FDA 300-75	●	?	141 x 35 x 30	30	750
FDA 300-150	●	?	141 x 35 x 30	30	1500
FDA 320-75	●	?	152 x 35 x 30	32	750
FDA 320-150	●	?	152 x 35 x 30	32	1500
FDA 350-150	●	?	205 x 35 x 30	35	1500
