WENTEQ

WENTEQ

WENTEQ Microwave Corp的低價格提供各種高質量的射頻和微波產品，交貨時間短。WENTEQ產品包括同軸連接器和適配器，環行器，隔離器，低噪聲放大器，功率放大器，寬帶放大器，終端，波導組件等。WENTEQ的產品覆蓋頻率范圍從9kHz到110ghz。

WENTEQ超低噪聲放大器

Model	Frequency, (GHz)	Noise Figure, Typical (dB)	Power Gain, (dBm)	Gain Flatness, (dB)	Input/output VSWR	Output P/1 dB Power, (dBm)	DC Voltage (V)	DC Current (mA)
ALN007-29-3315B	0.06-0.08	1.5	33	±0.25	1.35:1/1.5:1	15	+24.0	120
ALN007-57-2820B	0.05-0.09	2	28	±0.35	1.35:1/1.5:1	15	+24.0	120
ALN0025-08-5208NW	0.24-0.26	0.8	52	±0.10	1.5:1	12	+24.0	150
ALN0025-40-3006	0.2~0.3	0.6	30	±0.35	1.5:1	16	+12.0	110
ALN0025-40-4006	0.2~0.3	0.6	40	±0.50	1.5:1	16	+12.0	120
ALN0035-29-3006	0.3~0.4	0.6	30	±0.35	1.5:1	16	+12.0	110
ALN0035-29-4006	0.3-0.4	0.6	40	±0.50	1.5:1	16	+12.0	120
ALN0050-40-3006	0.4~0.6	0.6	30	±0.35	1.5:1	16	+10+12.0	110
ALN0050-40-40066	0.4~0.6	0.6	40	±0.50	1.5:1	16	+10+12.0	120
ALN0060-33-3006	0.5~0.7	0.6	30	±0.35	1.5:1	16	+10+12.0	110
ALN0060-33-4006	0.5~0.7	0.6	40	±0.50	1.5:1	16	+10+12.0	110

WENTEQ輸入受保護的低噪聲放大器

Model	Frequency (GHz)	Typical Noise Figure (dB)	Power Gain (dB)	Gain Flatness	In/Out VSWR	Output P ldB Power	VCC Voltage
AIP0030-67-3006	0.2-0.4	0.6	30	±0.75	1.5:1/1.3:1	10	12
AIP0030-67-3506	0.2-0.4	0.6	35	±0.75	1.5:1/1.3:1	10	12
AIP0030-67-4006	0.2-0.4	0.6	40	±0.75	1.5:1/1.3:1	10	12
AIP0050-40-3006	0.4-0.6	0.6	30	±0.75	1.5:1/1.3:1	10	12
AIP0050-40-3006	0.4-0.6	0.6	35	±0.75	1.5:1/1.3:1	10	12
AIP0050-40-3006	0.4-0.6	0.6	40	±0.75	1.5:1/1.3:1	10	12
AIP0115-26-3012	0.9-1.2	1.2	30	±1.0	1.5:1/1.3:1	10	12
AIP0115-26-3512	0.9-1.2	1.2	35	±1.0	1.5:1/1.3:1	10	12
AIP0115-26-4012	0.9-1.2	1.2	40	±1.0	1.5:1/1.3:1	10	12
AIP0120-33-3012	1.0-1.4	1.2	30	±1.0	2.0:1	10	12
AIP0140-29-2812	1.2-1.6	1.2	28	±1.0	2.0:1/2.0:1	10	12
AIP0195-26-4010	1.7-2.2	1.0	40	±1.0	1.5:1/1.5:1	15	12
AIP0230-26-4012	2.0-2.6	1.2	40	±1.0	1.5:	15	12
AIP0230-26-4812	2.0-2.6	1.2	48	±1.5	1.5:1/1.5:1	16	12
AIP0240-17-3012	2.2-2.6	1.2	30	1	2.0:1	10	12
AIP0240-17-4012	2.2-2.6	1.2	40	1	2.0:1	10	12

WENTEQ寬帶低噪聲放大器

WENTEQ

Model	Freq. Ghz	Noise Figure (dB)	Power Gain, (dBm)	Gain Flatness, (dB)	Input/output VSWR	Output P/1 dB Power, (dBm)	DC Voltage (V)	DC Current (mA)
ABL0015-01-2317	0.0001-0.15	1.7	23	+/-1	1.5:1	12	+12.0	40
ABL0015-01-3317	0.0001-0.15	1.7	33	+/-1	1.5:1	12	+12.0	110
ABL0015-01-3817	0.0001-0.15	1.7	38	+/-1	1.5:1	12	+12.0	110
ABL0040-00-6010	0.0001-0.4	1.0	60	+/-1.5	1.5:1/1.6:1	16	+12.0	150
ABL0050-00-3310	0.00001-0.5	1.0	33	+/-1.0	1.5:1/1.6:1	10	+12.0	70
ABL0050-00-4010	0.00001-0.5	1.0	40	+/-1.0	1.5:1/1.6:1	15	+12.0	110
ABL0050-00-4510	0.00001-0.5	1.0	45	+/-1.0	1.5:1/1.6:1	16	+12.0	110
ABL0050-00-5010	0.00001-0.5	1.0	50	+/-1.0	1.5:1/1.6:1	16	+12.0	110
ABL0050-00-5510	0.00001-0.5	1.0	55	+/-1.0	1.5:1/1.6:1	16	+12.0	110

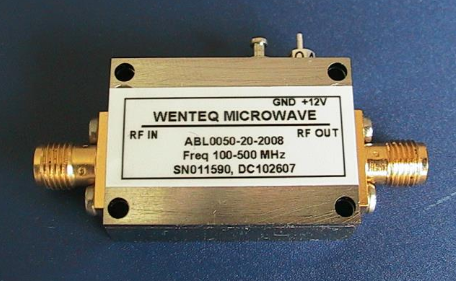

ABL0050-20-2008	0.10-0.50	0.8	20	+/-1.0	1.3:1	15	+12.0	60
ABL0050-20-3008	0.10-0.50	0.8	30	+/-1.0	1.3:1	12	+12.0	90
ABL0050-20-4008	0.10-0.50	0.8	40	+/-1.25	1.3:1	10	+12.0	90
ABL0050-20-5008	0.10-0.50	0.8	50	+/-1.25	1.3:1	10	+12.0	95
ABL0060-02-6710DPMB	0.01-0.6	1.0	67	+/-0.5	1.35:1/1.35:1	16	+15.0	160
